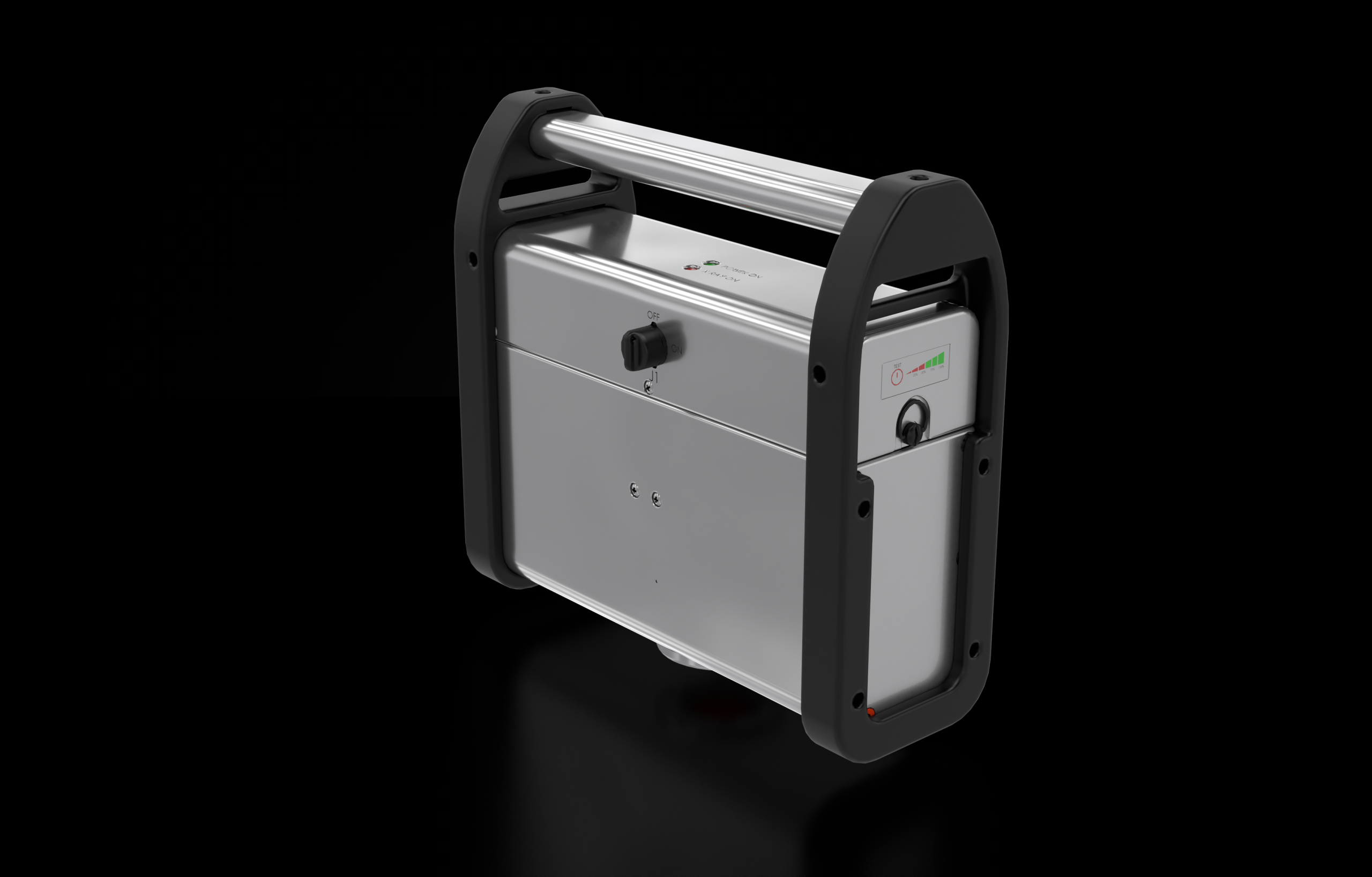

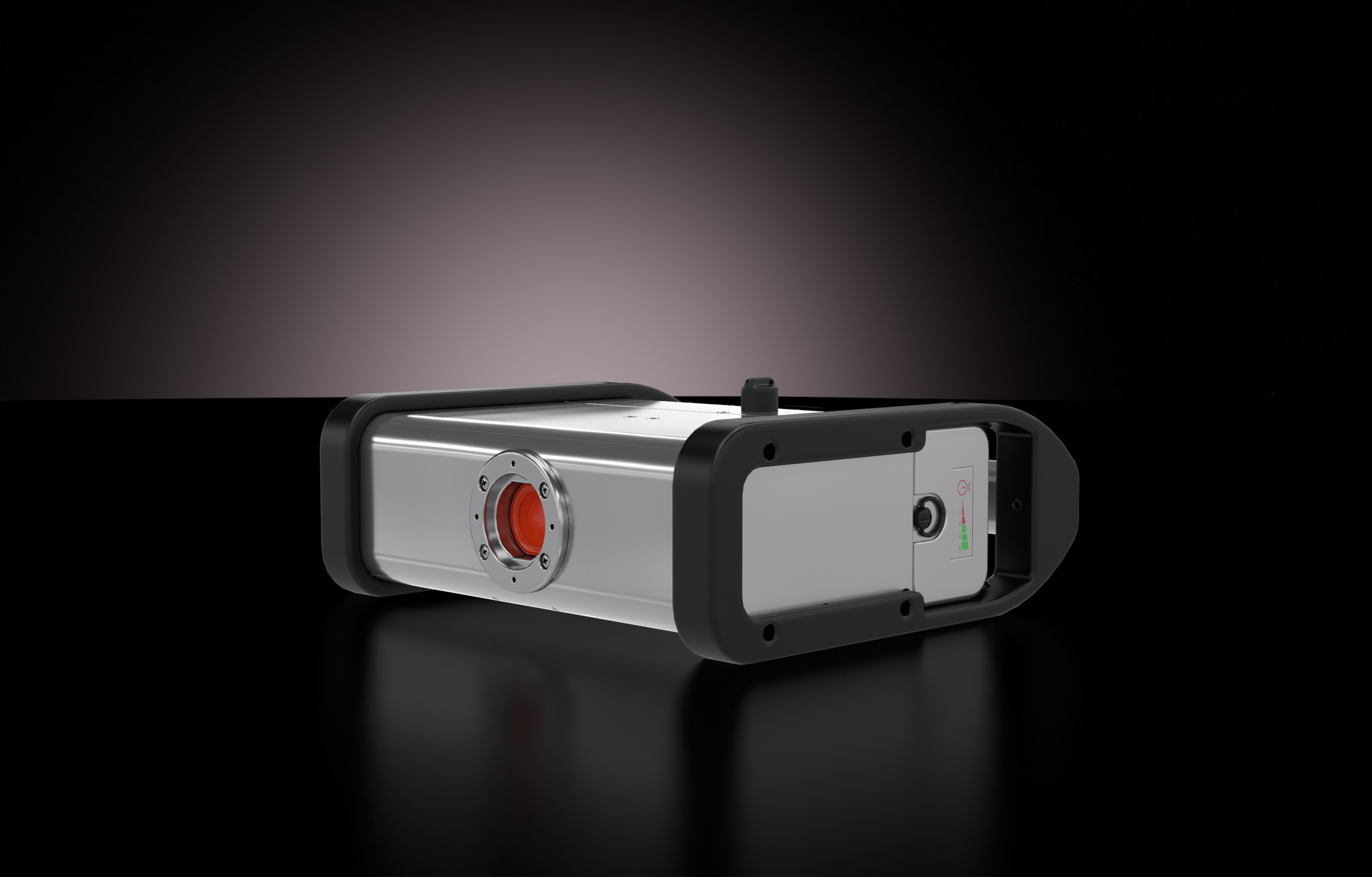

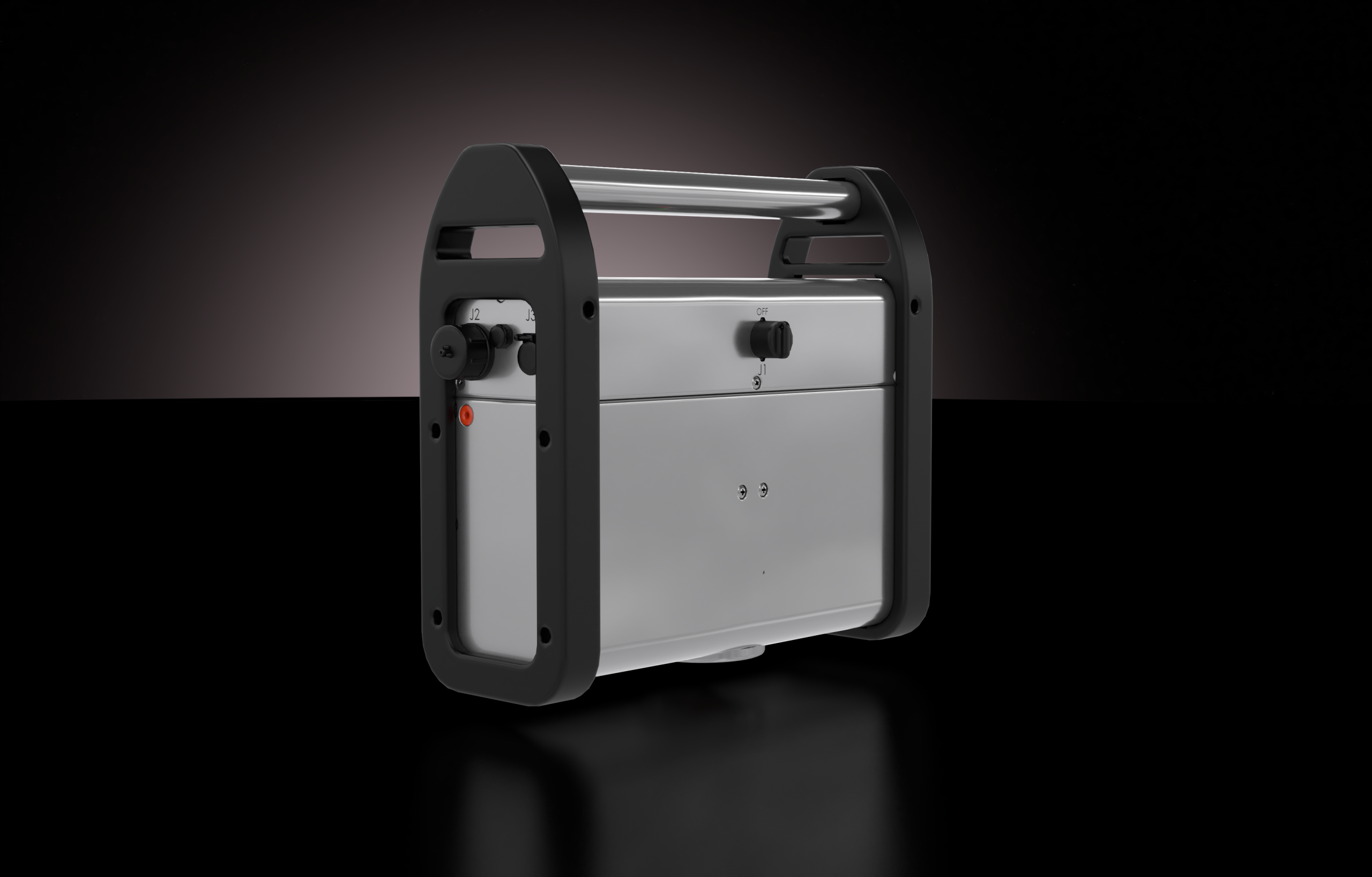

IXS1515
Portable+
Integrated X-ray source with X-ray tube, high voltage inverter, filament supply, and heat dissipation component.
> Download Data Sheet
Max kV Output
150 kV
Max Power
150 W
Focal Spot Size
0.5 nominal
Beam Angle
Cone 35º, Fan 60º
Key Features
- Battery Operated
- Radiation Shield
Battery Operated
Equipped with a 24V Li-ion Battery Pack or 24VDC (External Supply) for optimal portability and flexibility in the field.
Radiation Shield
Localized radiation shielding in IXS1515 Portable + eliminates the need for extra shielding in the system, reducing costs for OEMs and protecting the system against electronic component failure caused by radiation.
Specifications
- Details

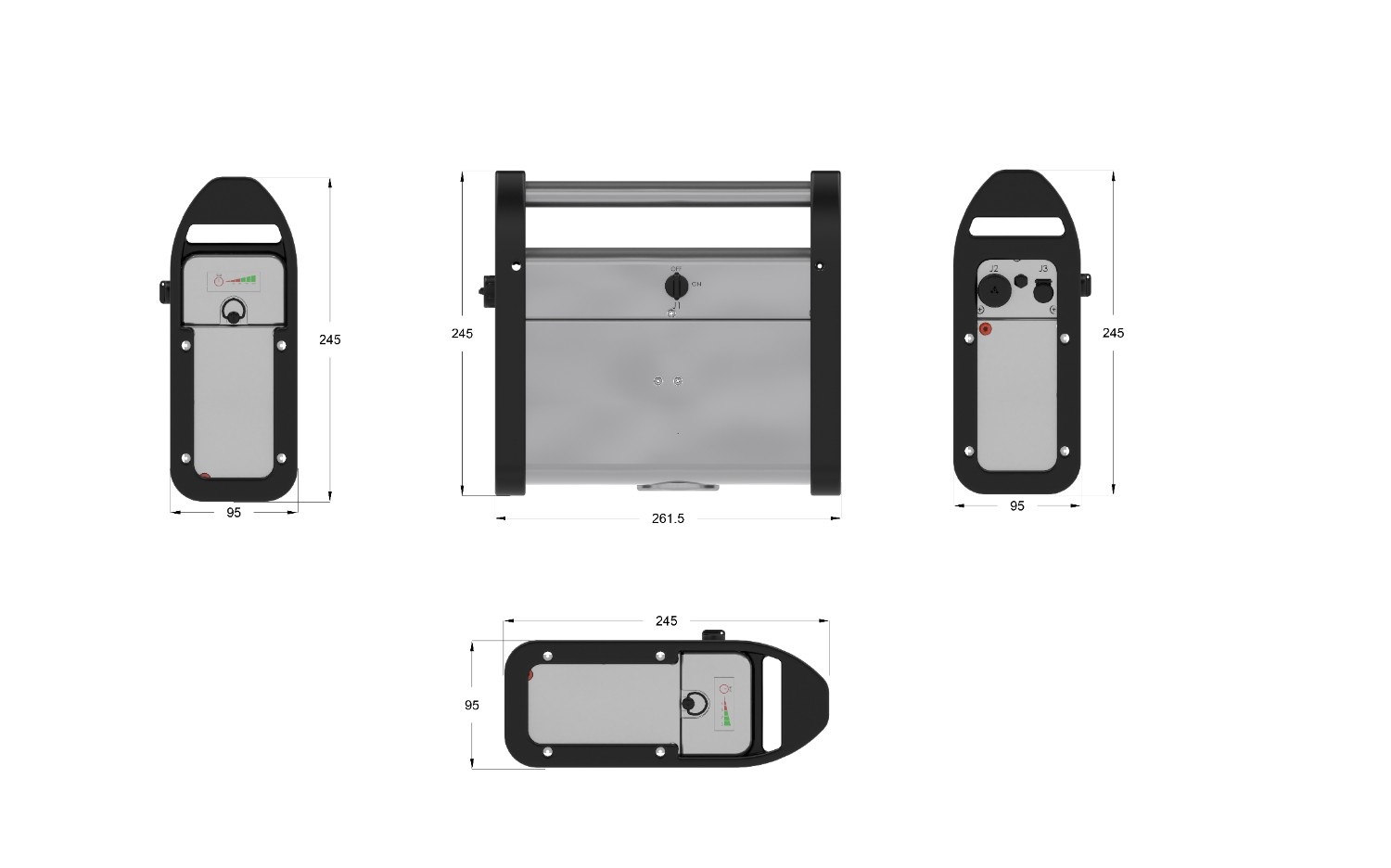

- Dimensions
Input Line Range
24V Li-ion Battery Pack or 24VDC (External Supply)
Radiation Shield
0.5mR/hr at 150kV measured 5 sec scan at 1 meter distance
Generator Weight
6.8 kg (Includes battery)
Download IXS1515/ Portable+ datasheet
