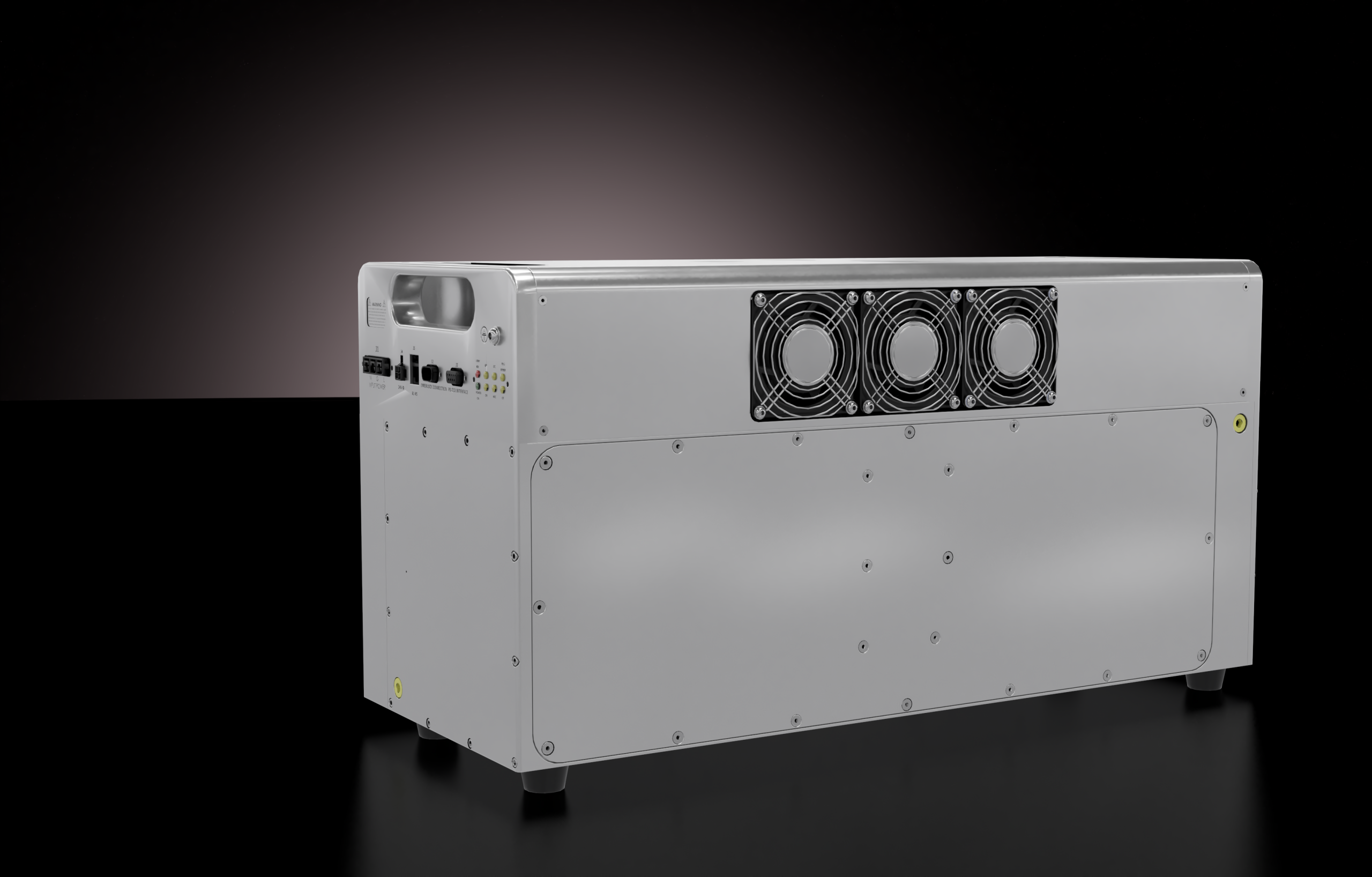

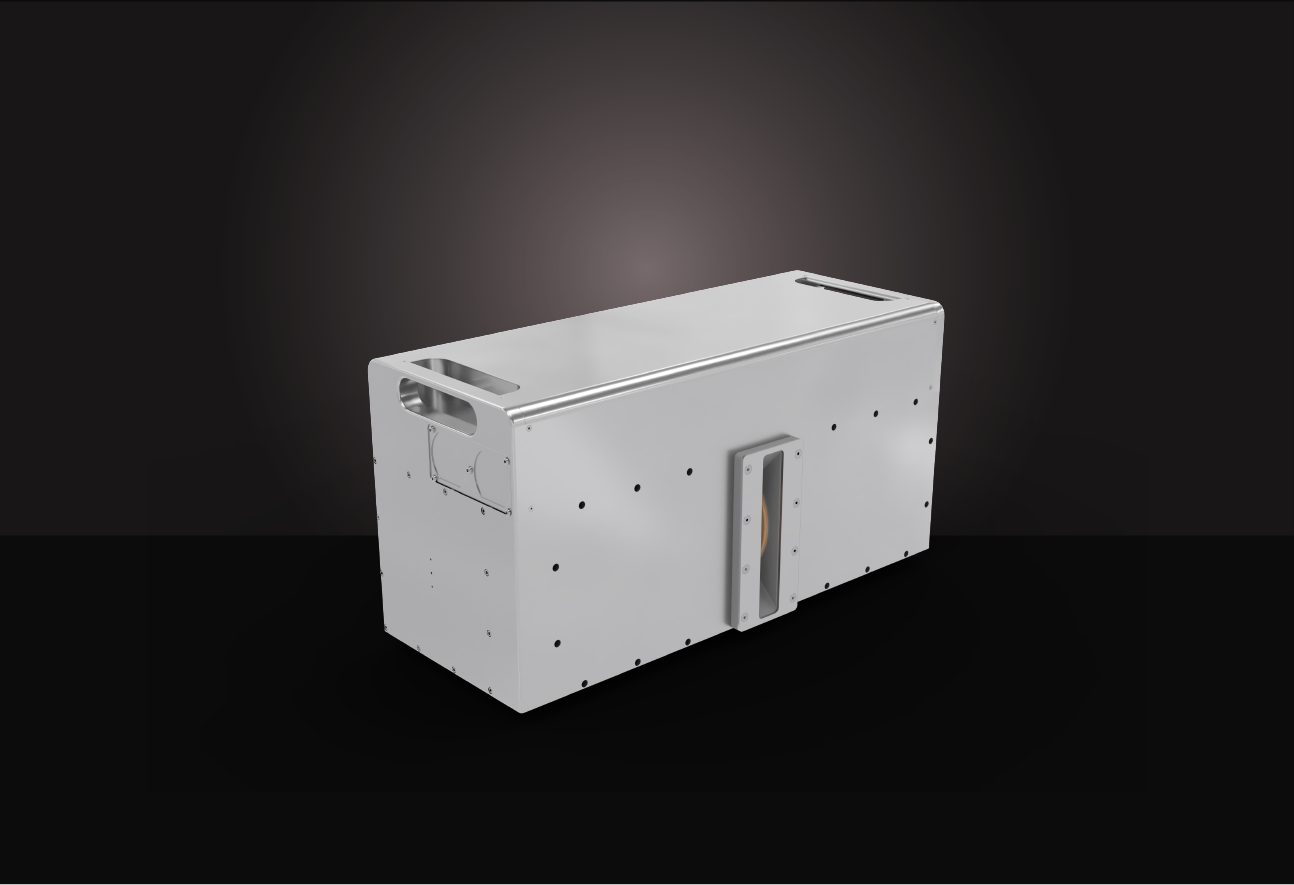

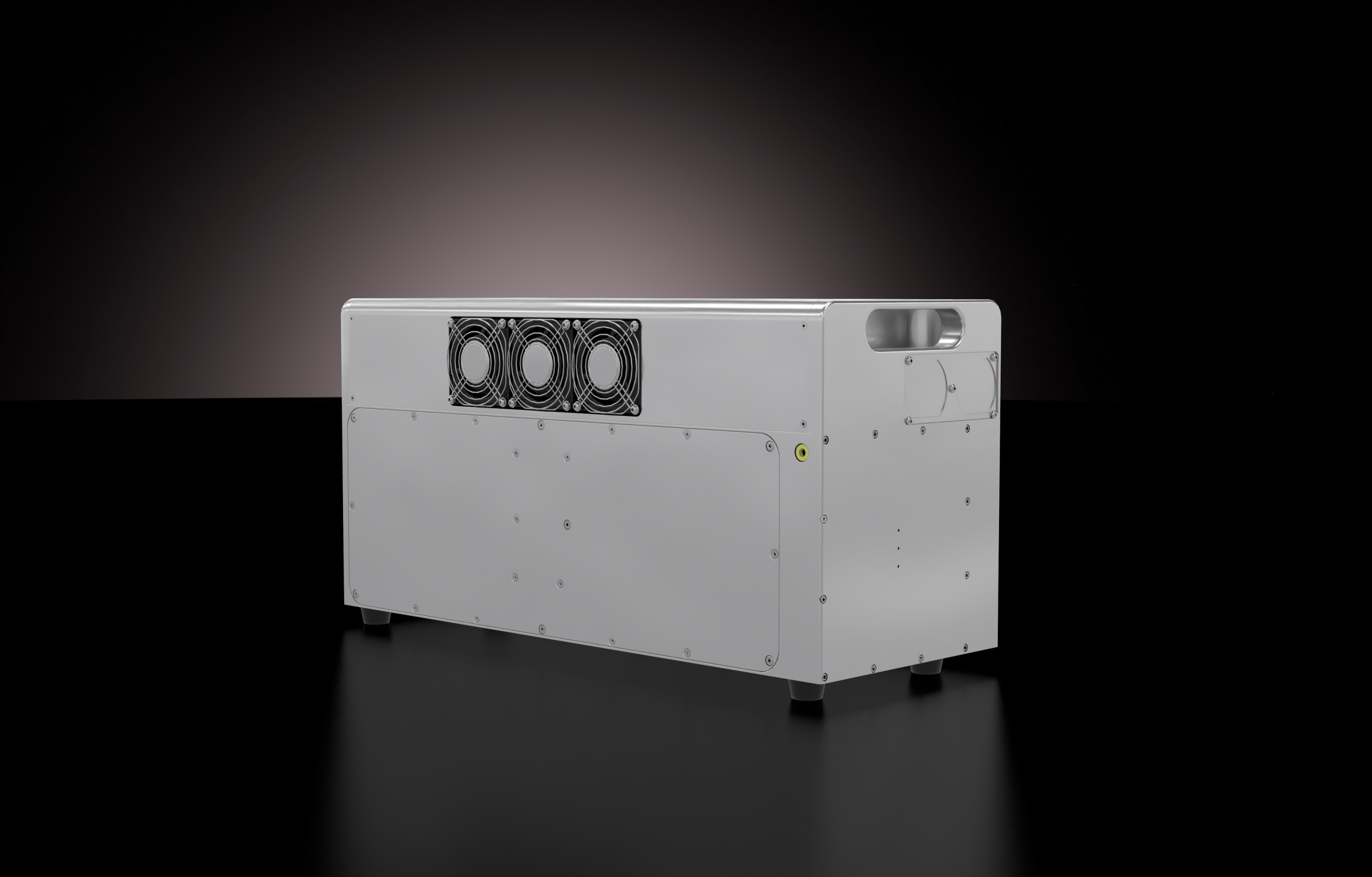

IXS2550
Integrated X-ray source with X-ray tube, high voltage inverter, filament supply, and heat dissipation component.
> Download Data Sheet
Max kV Output
250 kV
Max Power
500 W
Focal Spot Size
0.8 nominal as per IEC60336 (0.2FS available at 150W max)
Beam Angle
Fan beam: 80º x 10º (Beam port opening: 90º x 10º max)
Key Features
- Versatility
- Radiation Shield
Versatility
The IXS2550 offers an ideal alternative to conventional high voltage generator and x-ray tube set up.
Radiation Shield
Localized radiation shielding in the IXS2550 eliminates the need for extra shielding in the system, reducing costs for OEMs and protecting the system against electronic component failure caused by radiation.
Specifications
- Details

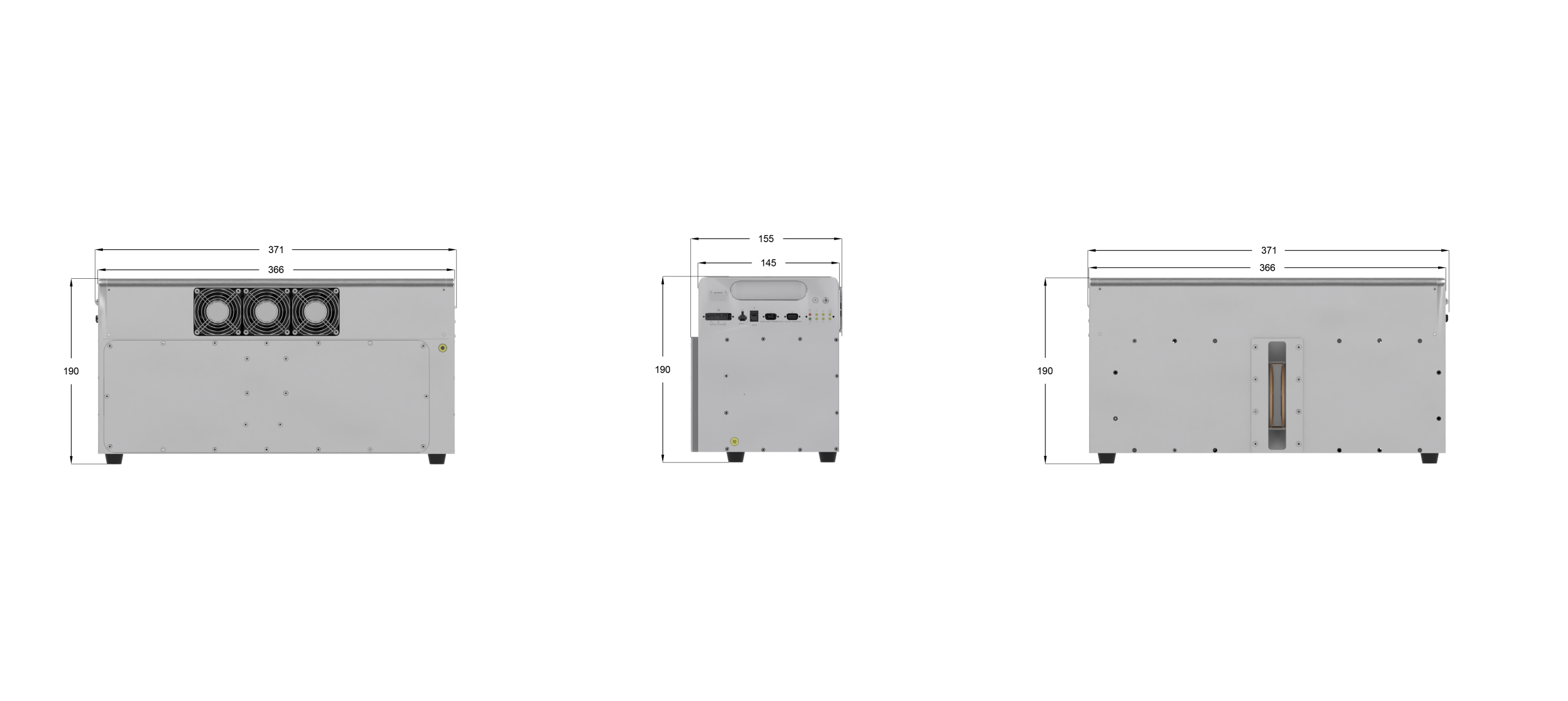

- Dimensions
Input Line Range
220VAC±10%, 50/60 Hz
Radiation Shield
Less than 0.5 mR/hr at 5 cm from the surface of the chassis as per FDA 21 CFR 1020.40
Generator Weight
60 kg
Download IXS2550 datasheet
